A small selection of the bridges we’ve built
Some bridges that may be close to you to view
loading map - please wait...

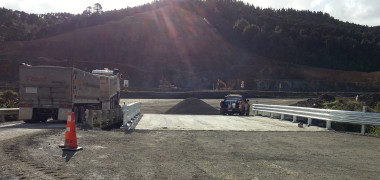

8 metre Waingaro road, installed Dec 2021
- Finishing approaches are ready for drilling posts and fitting a 30m Thrie-beam extension beyond the bridge
- The bridge deck has been brought in, completed
- This is a replacement for an old council bridge
Before:
After:
54 metre Tahuna/Paero Rd
36m Tahuna Road – Te Hoe

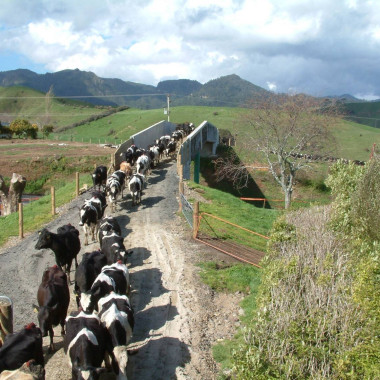

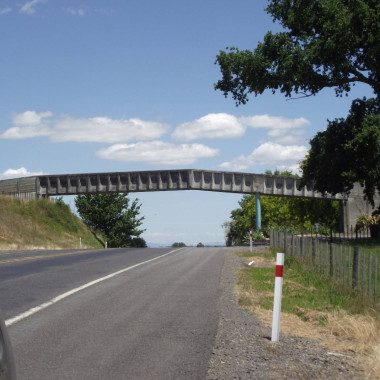

30 metre Over Bridge Puriri SH 26
This overbridge is designed to accommodate both cattle and dairy tankers, as well as trucks and trailers. It is a better option than an underpass, as it imposes no restrictions on vehicle height.
25 metre bridge and 650metres of roading. Manawaru Rd
Working on head walls. Piles are driven 9m down to solid ground. It’s a big day as we move out to the site. Installation will be complete by the end of the day. 650 metres of roading and the bridge have been completed.

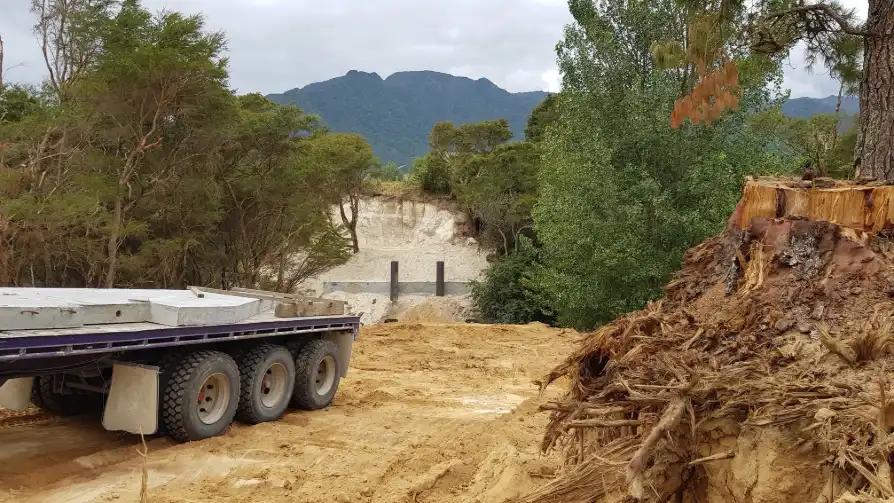

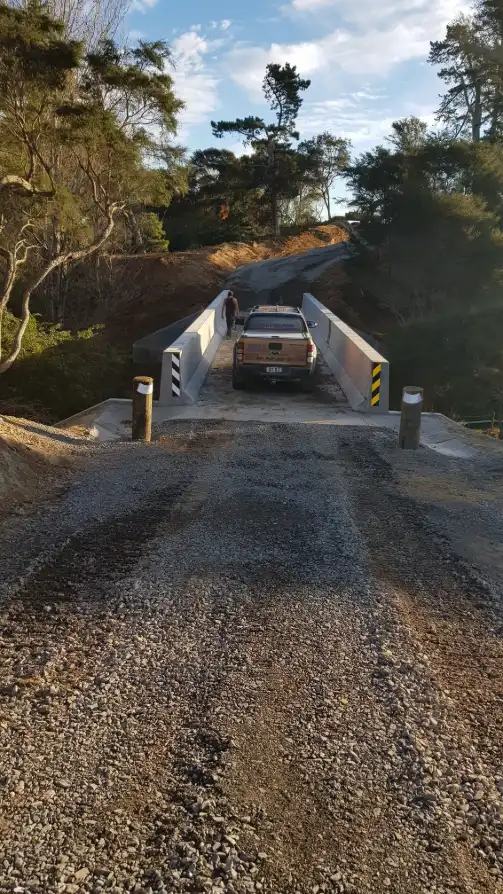

25 metre 400 Weranui Rd, Puhoi
Bridge Installation Schedule:

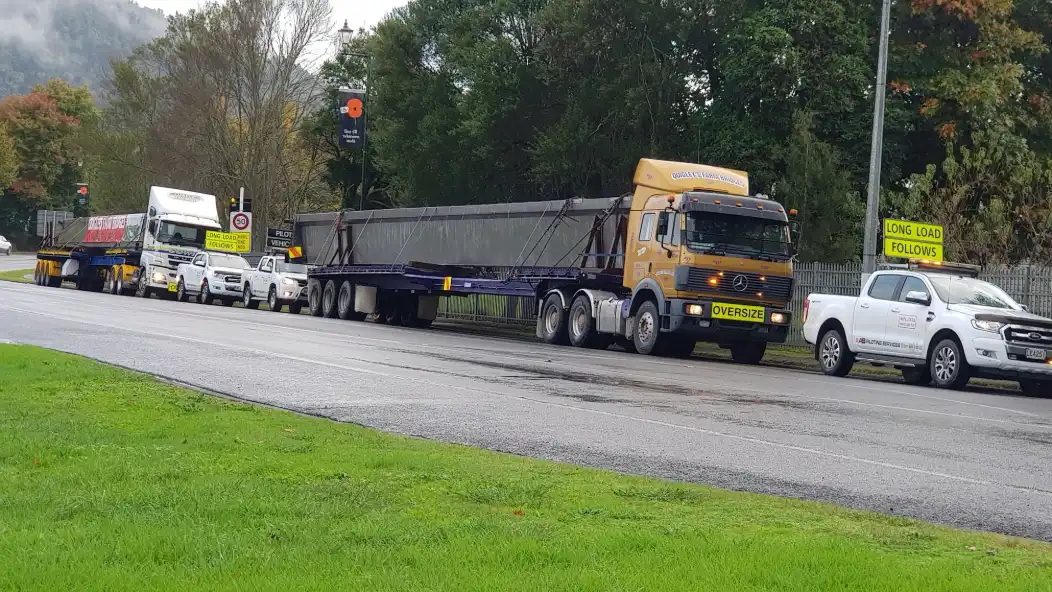

- Monday: Girders are lifted into place. The first girder is craned in.

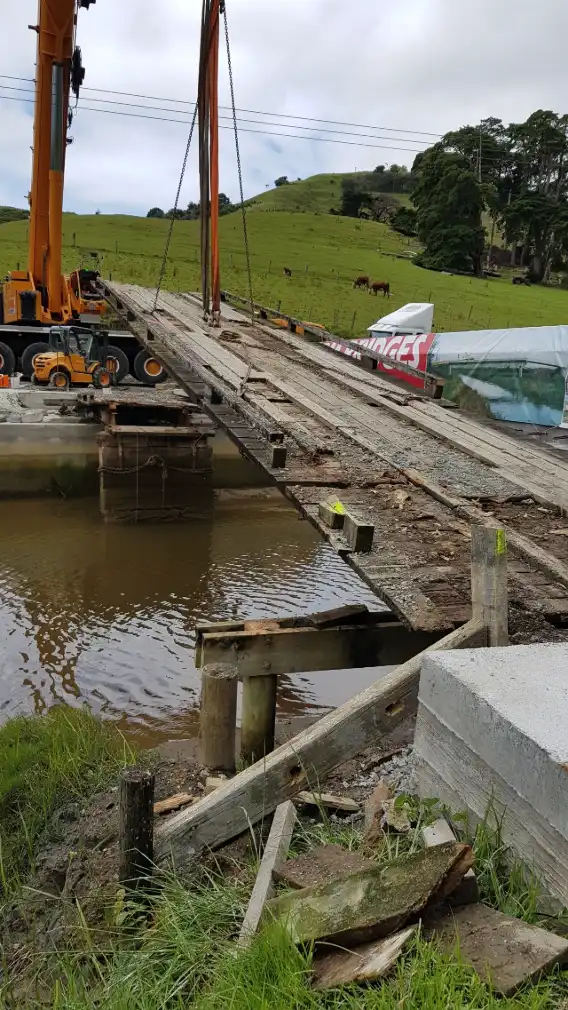

- Tuesday: The old bridge is removed, and the second girder, along with deck panels, is craned in.
- Wednesday: The deck is stressed and grouted.
Total duration: 2 days.
November 2020.

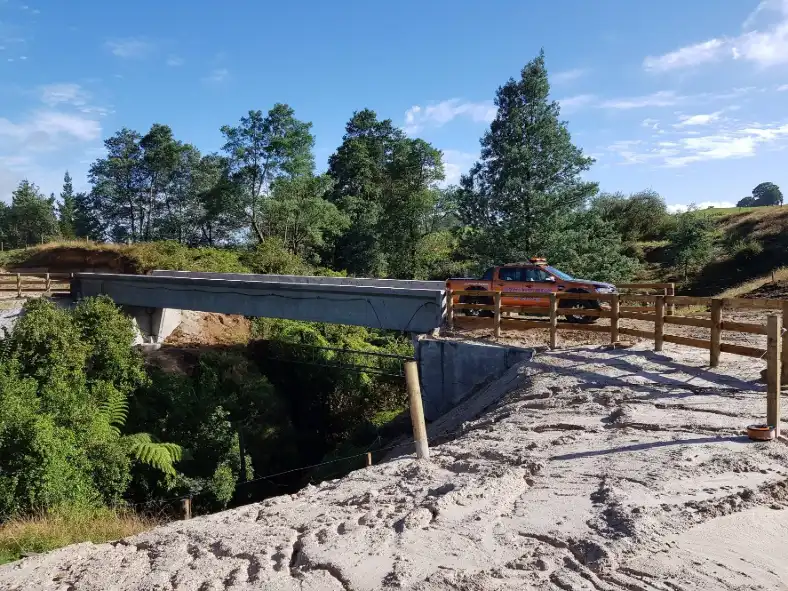

21 metre Tirau
18 metre Otorohunga
18 metre Silverdale Auckland
15 metre Culvert for forestry
14 metre bridges

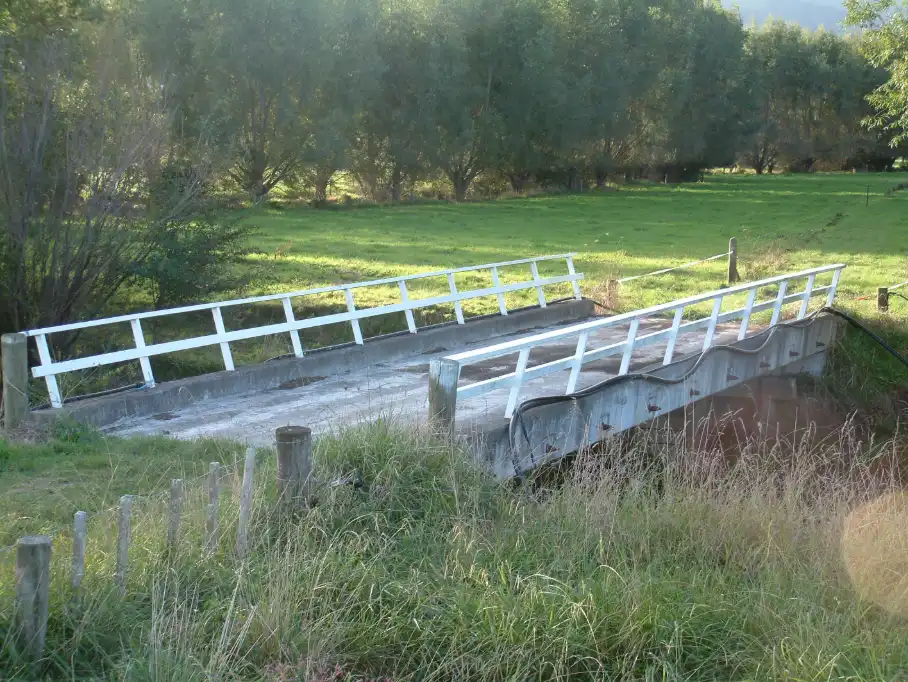

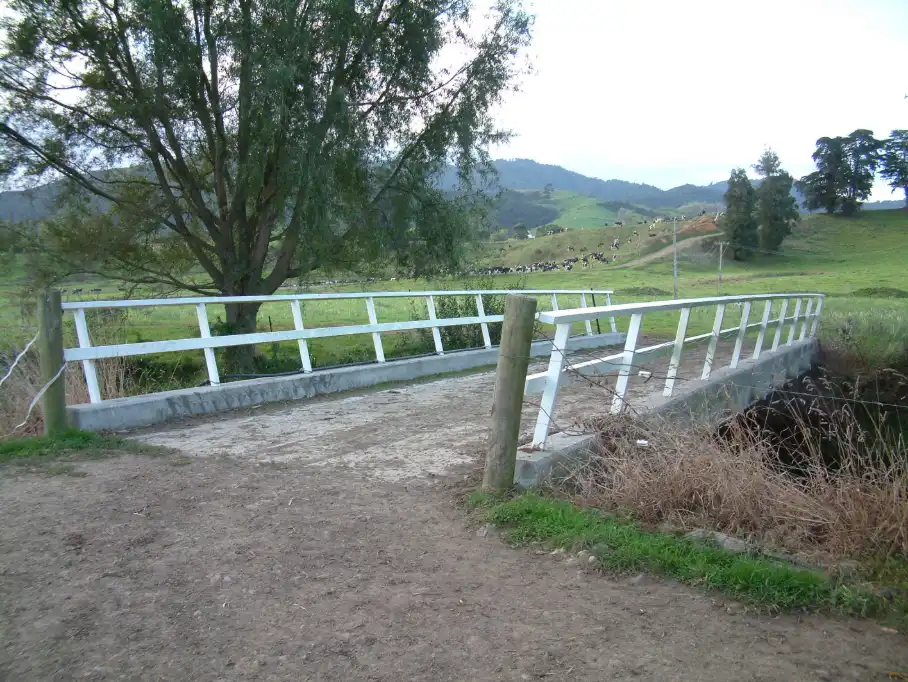

- Tahuna Rd Miedema’s
- Te Kuiti – Symonds
- Transpower 14m Horohoro
12 metres
- Symonds – Gordonton, Old railway wagon
- Penfold – Old mountain road, Old railway wagon signed off by council
- Johanson – Piako Rd
- Woodlands Rd Gordonton – Riddles
- Guardian Trust – Matamata base of the Kaimi guardia
- Dave Crabbs and Beverly – Back of Dairy flates and Warkworth
- Transpower 12m Paradise Valley Rd
- 2 Lane subdivision bridge, Matangi
- 2 lane quarry bridge, Tauhai 85 ton
-
2 lane quarry bridge, Tauhai to take 85 ton bull dozer.
11metre bridges Kumeu
Old Bridge Overview:
- First Bridge: Consisted of an old railway wagon.
- Second Bridge: Made of concrete car park panels.

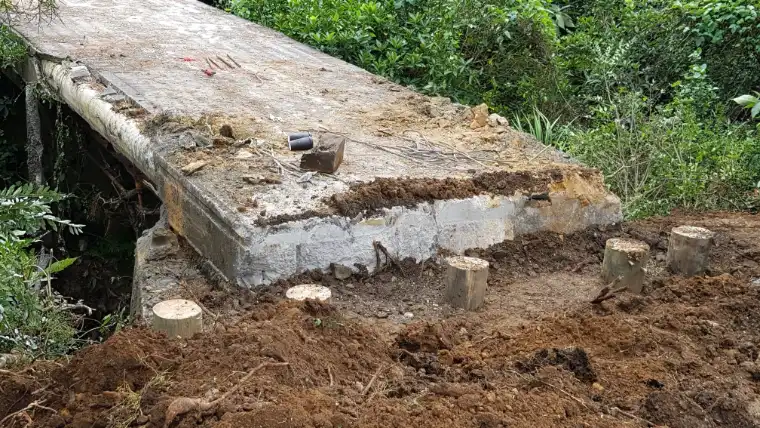

Photos also show that piling for the new bridge has been completed (piled 4m down to solid ground). The old bridges have been removed in preparation for the new TNZ code-compliant bridge.
9 metre bridge with pedestrian crossing
Police Camp – Silverdale, Auckland:
This bridge had to be completely manufactured in the yard as a single component. There was only a 3-day window to remove the old bridge and complete the installation of the new bridge and pedestrian crossing.
Miedema 7.5 metre Te Hoe
This bridge was installed in 2011 on a leased block of land that required a new bridge. It was designed and installed in a way that allowed it to be easily lifted out and reused or sold when the lease expired. This approach ensured that the asset was not lost.
Transpower 6m Paradise Valley Rd dismantling
6 Metres – Te Mata Child Care Centre
The bridge was realigned with new abutments installed. The new bridge was then craned into place and fixed to the abutments.
5 metres Overpass
Better than an underpass, as it allows all trucks and machinery to pass through without restrictions.
Miedema 5 metre Te Hoe

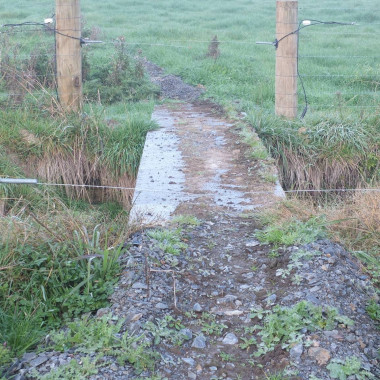

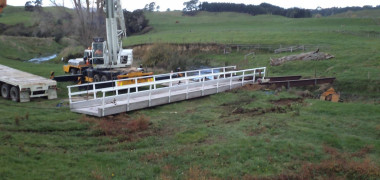

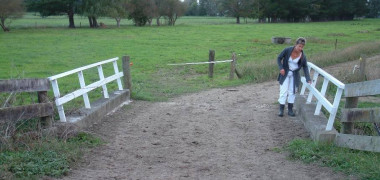

ATV Bridges
These bridges are designed to facilitate the crossing of cows, farm bikes, and utes over streams where there is no need for trucks, tractors, or vehicles over 5 tonnes. They provide a cost-effective solution for “bridging a gap”.
SH 29 – 15metre getting ready to crane across creek.
10 metre ATV – O’Sullivan – Morrinsville
15 metre ATV Old Mountain Road, Te Mata.

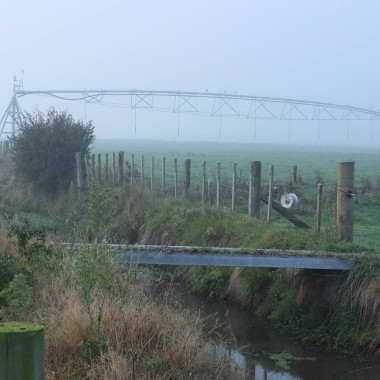

Irrigator Crossings
These bridges are designed to support large paddock rotating irrigator wheels. They can handle loads of up to 4 tonnes and span from 3 metres to 15 metres with our current design. The width is tailored to accommodate the required crossing angle.
We have supplied a large number to Rangiriri Farms
